ALLWIN Epson Eco-solvent Printer 3.2meter

Product Details:
Model:
E-320S
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Piece/Pieces
Place of Origin:
Min. Order:
FOB Price:
USD 5000.00-20000.00 /Piece
Shipping Terms:
1
Shippment Port:
Shanghai
Payment Terms:
T/T
Show Buyers your Ability to Supply:
Production Capacity:
100 Piece/Pieces
Delivery Time:
in 7 days after payment
Packaging:
Wooden package dimension 3250MM*760MM*930MM GW 400KG

Detailed Product Description

Indoor and outdoor printer :

 ALLWIN eco solvent printer takes Japanese products quality of the
    same kind as standard in production
Product feature:
1.The printing quality is competitive to the Japanese  eco solvent printers;
2.Automatic feeding and collecting structure;
3.Two printheads design with intelligent infrared heater and fan drying system;
4.The machine through different quality tests is stable and competent
   enough for mass production requirement .

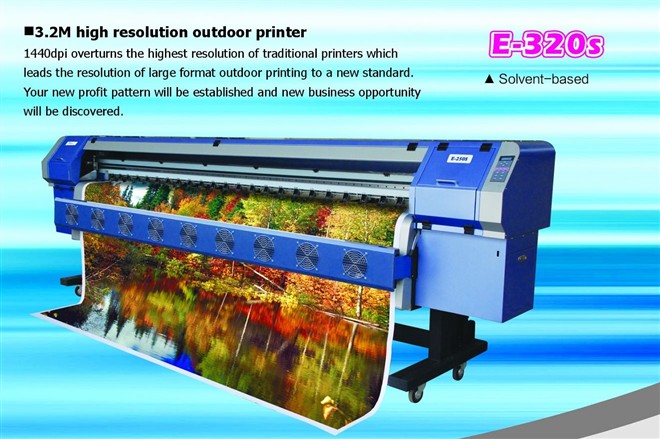

3.2M high resolution outdoor printer
1440dpi overturns the highest resolution of traditional printers which
leads the resolution of large format outdoor printing to a new standard.
Your new profit pattern will be established and new business opportunity
will be discovered.

Support two rolls of media printing together, 50% enhanced in speed.

One E320 printer equals to three 1.6M single head printers;



Double piezoelectric printheads



Epson english.jpg





Double piezoelectric printheads can achieve high speed, high quality and better durability



which Epson piezoelectric printheads are famous for. It can accurately position each ink



droplet and accurately control the ink level. Each color has  two ink channels (360 nozzles



for each color) which can obtain much higher speed.











3 separate heaters

pre heater: enhance the ink adhesion;
Bed heater: solidify ink droplet shape;
Rear heater: speed up ink drying.




 Epson english.jpg



 Variable Ink-drop technology,photographic quality printing.



There are three different sizes of ink-drop, users can change the ink-drop size to print



according to the demand of color gradient, which makes picture  higher resolution and



better sense of depth layout.





 .jpg

Printer Model E-320S/W
Printhead EPSON Micro piezo print head
  Printheads quantity/
printheads align
2 pieces / staggered align
Inks water based dye /water based pigment/eco solvent ink /dye sublimation ink/
reactive ink/acid ink
Max Print Width 3.20 Meter
Ink cassette capacity 1000CC/COLOR
Picture drying system fan drying system, infrared heating
(three sections)
Three heating sections Pre-heater, printing bed heater, rear heater
Auto feeding/
collecting system
double feeding and collecting systems
(print 2 rolls in the same time)
Working environment/
power
temperature:15-35°C    relative humidity:40%-65%
50Hz, 220V(±10%)>16A
Dimensions(L*W*H)/
Weight
4420MM x 820MM x 1480 MM/ 500KG
printing mode/speed 2pass,3pass,4pass,6pass,8pass,12pass
  print speed for 1 head   32 M2/h,22 M2/h  ,16 M2/h  ,11 M2/h  ,8 M2/h  ,5.5 M2/h
  print speed for 2 head   64 M2/h,44 M2/h  ,32 M2/h  ,22 M2/h  ,16 M2/h  ,11 M2/h
  print speed for 4 head   128 M2/h,88 M2/h  ,64 M2/h  ,44 M2/h  ,32 M2/h  ,22 M2/h

FOTOS:
