ALLWIN Textile Printer

Product Details:
Model:
TISSOT-JV
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Piece/Pieces
Place of Origin:
Min. Order:
FOB Price:
USD 5000.00-20000.00 /Piece
Shipping Terms:
1
Shippment Port:
Shanghai
Payment Terms:
Show Buyers your Ability to Supply:
Production Capacity:
100 Piece/Pieces per 0
Delivery Time:
Packaging:
Wooden package dimension 3250MM*760MM*930MM GW 400KG

Detailed Product Description

TISSOT-JV digital belt textile printer feature
◆High speed
Maximum printing speed reaches 45m2/ h, which can meet mass production needs;

◆Wide range of applications
Cloth fabric, textile, clothing and many other areas of application;

◆Various color gamut
The latest color control and color management system to manage and correct color and
ensure consistent color for each batch of printing. Up to the eight-color printing.
CMYK together with light cyan, light magenta, sapphire blue, orange can realize soft
colors, texture, natural color transitions. CMYK plus orange, blue may show a wider
color gamut, and can very confidently match with blue color.
It adopts a variable droplet technology to produce three different sizes of small ink
drops, the smallest droplet to 4.7pl. Even high-speed printing is also a beautiful smooth
grain-free color transition, combined with RCR and variable droplet technology,

◆Wide range of application
Reactive ink can be used for silk, cotton and nylon printing.
At the same time it can be used on polyester and chemical fiber printing
with paint or disperse dyes. Acid ink for nylon printing.

◆Professional channel control technology
Achieving control of each channel, to provide technical guarantee for color consistency
of digital printing, flat screen and rotary screen printing .

◆High-speed data processing and transmission
High-speed USB and bi-directional parallel interface transfer printing, both data
transmissions are simple and efficient.

◆High-speed production-level head
Staggered print heads: four staggered print heads, head is four times wider than
conventional head, which is the source of its amazing output speed. Total 5760 nozzles
spray at the same time, each printing unit is equipped with four 1-inch large
high-precision print heads, each print line distance is 101.6 mm.

◆ Professional RIP software
RIP and print output can be achieved simultaneously, greatly improved production
efficiency. compatible with postscript language, photoshop, coreldraw, IIustrator,
Freehand. Support TIF, JPEG, EPS, PS, PDF, DCS2.0 and other file formats.

◆ Advanced belt conveyors and correcting device, and print head lifting devices

◆ Fabric loading, feeding, printing, drying, picking-up integrated in one,

   which is more convenient

◆ More humane settings, LED print platform lighting

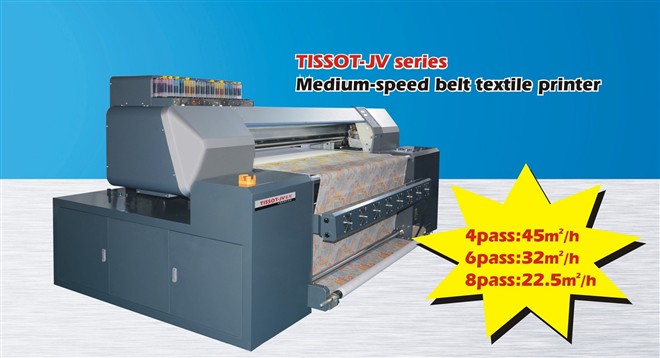

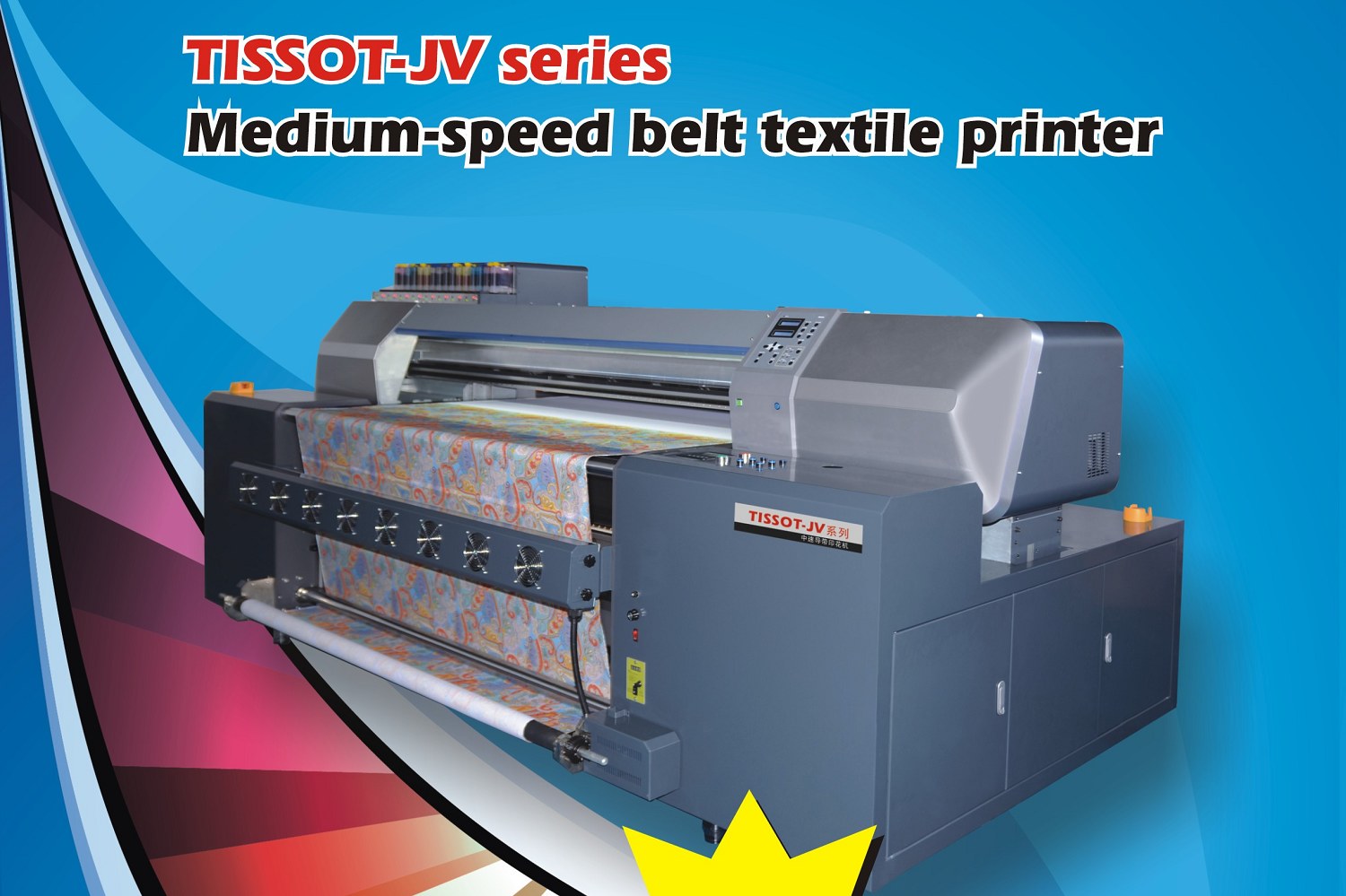

TISSOT-JV series Medium-speed belt textile printer

Technical parameter

Print head type  online micro piezo print head (4 heads staggered)
 Height adjustable  head height of 0-20mm (1.5mm ~ 7mm automatic detection of textile thickness without manual setting by customers)
 Printing mode
(color separation*
transmission )
540dpi/720dpi/1080dpi/1440dpi   Four kinds of precision can be switched
720×540dpi: bi-direction/uni-direction
540×1080dpi: bi-direction/uni-direction
540/720×720dpi: bi-direction/uni-direction
540/720×1080dpi: bi-direction/uni-direction
720×1440dpi: bi-direction/uni-direction
1440×1440dpi: bi-direction/uni-direction
 Printing speed  45m2/h(720×540dpi)
 Max. printing width  1600mm
 Max. media width  1630mm
 Fabric type  woven or knitted cotton, flax, silk, polyester, cashmere, towel, etc.
 Ink cartridge  400cc±5cc
 Color types  four colors/eight colors: C,M,Y,K,LC,LM,B,O
 Ink type  acid, reactive, disperse and paint
 Power consumption  printing standby 1000W   heating 2 sets   4500W
 Power  single AC + ground 220∨±10%
 printing system 10A, heating system 20A 50HZ
 Working environment  temperature 23~30℃  humidity 35~65%Rh (not to freeze)
 Dimension  2800(L)×1800(W)×1450(H)mm
 Net weight

 less than 600KGS
